How Does a Gas Air Compressor Work

A gas air compressor is a portable, fuel‑powered mechanical device that converts atmospheric air into high‑pressure compressed air. Different from electric compressors that rely on grid power, it uses gasoline or diesel engines as the power source, making it widely used in outdoor construction, field operations, remote engineering and other scenarios without stable power supply. Its working mechanism is based on thermodynamics and mechanical transmission principles, completing energy conversion and air pressurization through a complete set of collaborative systems. This article elaborates on its overall working logic, core components, detailed working stages and auxiliary operating mechanisms layer by layer.

1. Overall Working Principle of Gas Air Compressor

The core working essence of a gas air compressor is energy conversion. It converts the chemical energy released by fuel combustion into mechanical energy of the engine, and then uses the mechanical operation of the compression host to squeeze and compress atmospheric air, finally converting mechanical energy into air pressure energy. The whole working process is a continuous cyclic system including air intake, purification, compression, energy storage, heat dissipation and pressure regulation.

All working procedures follow Boyle’s Gas Law: at a constant temperature, the pressure of a fixed amount of gas is inversely proportional to its volume. By reducing the internal space of the compression cavity, the compressor forces air molecules to compress densely, thereby raising air pressure and forming usable high‑pressure compressed air.

2. Core Structural Components of Gas Air Compressor

The stable operation of the compressor depends on the coordinated work of multiple core components. Each part undertakes an independent key function, laying the foundation for the whole compression process.

2.1 Gas Engine Power System

The gas engine is the power source of the entire equipment, replacing the motor of electric compressors. It burns gasoline or diesel to generate rotational mechanical power, and transmits torque to the compression host through the crankshaft and belt transmission structure. The power output of the engine directly determines the compression speed, maximum air pressure and working efficiency of the compressor.

2.2 Air Compression Host

The compression host is the core functional component for air pressurization, mainly including cylinders, pistons, crankshafts and intake and exhaust valves. Most portable gas compressors adopt piston reciprocating compression structure. The up and down reciprocating motion of the piston changes the internal volume of the cylinder repeatedly, realizing air suction and compression. Industrial high‑power models usually adopt two‑stage compression host structure to obtain higher air pressure.

2.3 Air Storage and Pressure Regulation System

This system consists of an air storage tank, pressure switch and safety relief valve. The air storage tank is used for storing high‑pressure compressed air and stabilizing air pressure to avoid fluctuating air supply. The pressure switch is the automatic control core of the equipment, which controls the start and stop of compression work according to the tank internal pressure. The safety valve is a protective component to prevent equipment overpressure and ensure operation safety.

2.4 Air Filtration and Heat Dissipation System

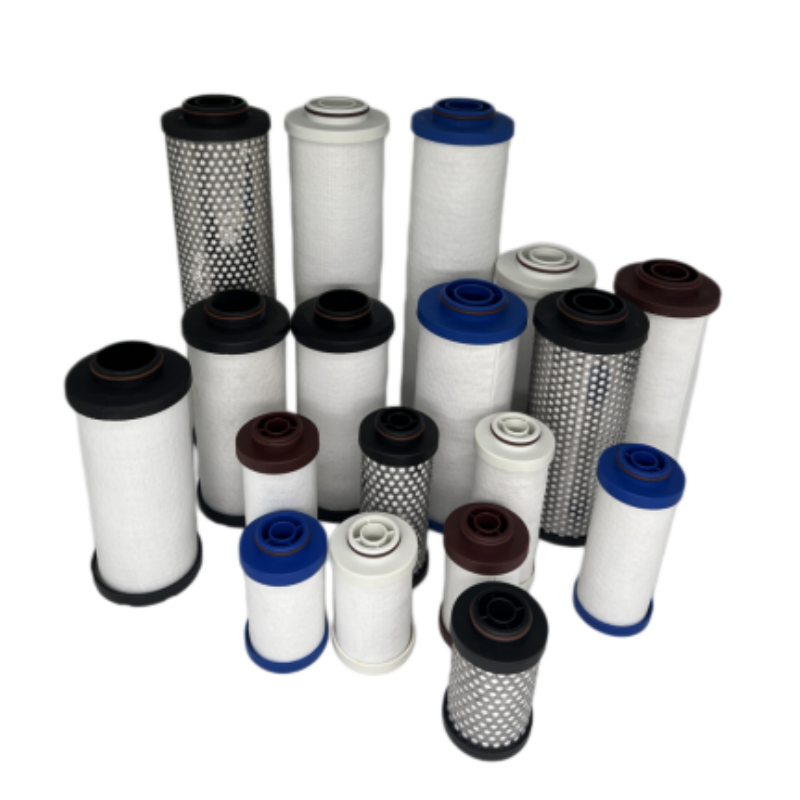

The filtration system is composed of high‑precision air filters, which block dust, impurities and water vapor in the air to protect internal precision parts. The heat dissipation system includes cooling fans and heat dissipation fins, which timely take away the high heat generated by mechanical friction and gas compression to prevent equipment overheating and failure.

3. Complete Working Stages of Gas Air Compressor

The working process of the gas air compressor is a closed and repeated cycle, which can be divided into five continuous and orderly working stages.

3.1 Air Intake and Purification Stage

When the gas engine starts and drives the compression host to operate, negative pressure is formed inside the cylinder. Under the action of atmospheric pressure, external air is sucked into the equipment through the air filter. In this process, the filter completely intercepts solid impurities such as dust and sand in the air, and initially filters part of water vapor, ensuring that clean and dry air enters the compression cavity, which can effectively reduce the wear of cylinder and piston parts and improve the quality of finished compressed air.

3.2 Mechanical Compression and Pressurization Stage

This is the core stage of air pressure formation. Driven by the engine transmission structure, the piston moves downward to complete air intake; when the piston moves upward, the intake valve is closed, the cylinder forms a closed space, and the internal volume is rapidly reduced. The air sealed in the cylinder is continuously squeezed, the molecular density increases sharply, and the air pressure rises rapidly.

3.2.1 Single‑stage Compression Principle

Small household and portable gas compressors mostly adopt single‑stage compression. The air is compressed once in a single cylinder to reach the conventional working pressure (0.7‑0.8MPa). The structure is simple and the operation is stable, which meets the needs of daily pneumatic tools and small mechanical equipment.

3.2.2 Two‑stage Compression Principle

Industrial‑grade high‑pressure gas compressors use two‑stage compression. The air is first compressed to medium pressure by the first‑stage cylinder, cooled by the intermediate heat dissipation structure, and then transmitted to the second‑stage cylinder for secondary compression. This staged compression mode reduces the heat generated by single high‑intensity compression, improves compression efficiency, and can output higher‑pressure compressed air to meet industrial high‑load working demands.

3.3 Air Storage and Pressure Stabilization Stage

When the air pressure in the cylinder reaches the preset upper limit, the exhaust valve opens automatically, and the high‑pressure compressed air is injected into the air storage tank for sealed storage. The air storage tank plays a key buffering and pressure stabilization role. It avoids the problem of unstable instantaneous air pressure caused by the intermittent working of the compression host, and can continuously supply stable high‑pressure air for the terminal equipment.

3.4 Automatic Pressure Regulation and Cycle Operation Stage

The pressure switch installed on the air storage tank monitors the internal pressure in real time. When the terminal equipment consumes compressed air and the tank pressure drops to the preset lower limit, the switch automatically activates the compressor, and the equipment restarts the intake and compression cycle to supplement air pressure. When the pressure returns to the upper limit, the compressor stops working automatically. This automatic cycle effectively saves fuel consumption and reduces unnecessary equipment loss.

3.5 Continuous Heat Dissipation and Cooling Stage

A large amount of heat will be generated during the operation of the engine and the compression process of gas. High temperature will lead to air thermal expansion, reduced compression efficiency, and even ablation of internal sealing parts. During the whole working process, the cooling fan operates synchronously, and the heat dissipation fins on the cylinder and engine continuously conduct and dissipate heat, keeping the equipment working in a safe temperature range.

4. Safety Protection Mechanism in Operation

To ensure the safe and stable operation of the equipment, the gas air compressor is equipped with a perfect safety protection system.

4.1 Overpressure Protection of Safety Valve

When the pressure switch fails and the tank pressure exceeds the safe threshold, the safety relief valve will automatically pop open to release excess high‑pressure air, quickly reduce the internal pressure of the tank, and prevent safety accidents such as tank explosion caused by overpressure.

4.2 Overheating and Overload Protection

High‑power gas compressors are equipped with temperature sensing and overload protection devices. When the equipment is overheated or the engine is overloaded for a long time, the system will automatically limit power or shut down to avoid equipment burnout and mechanical failure.

5. Conclusion

In short, the working process of a gas air compressor is an efficient and orderly energy conversion and gas pressurization cycle. It takes the fuel engine as the power source, relies on the mechanical movement of the compression host to change the gas volume, and realizes the production and storage of high‑pressure air with the cooperation of filtration, heat dissipation and pressure regulation systems. With its advantages of no dependence on electric power and strong portability, it makes up for the shortcomings of electric compressors and becomes an essential pneumatic power equipment in outdoor engineering, field maintenance and special working scenarios.
